● Standard general-purpose mounting bracket, compatible with most common building structures.
● Up to 240 Nm of torque, providing easier and more stable high-volume airflow output.
● Fan blade bracket safety ring, providing safety protection for the connection between the motor and the shaft.
● Unique airfoil tip design, eliminating vortex formation, improving airflow and efficiency.

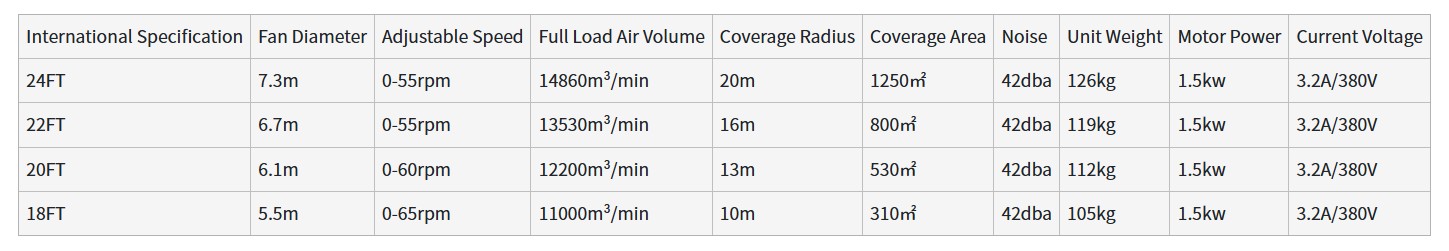

● Fan Diameter: 7.3m
● Adjustable Speed: 0-55rpm
● Full Load Air Volume: 14860m³/min
● Coverage Radius: 20m
● Coverage Area: 1250㎡
● Noise: 42dba
● Unit Weight: 126kg
● Motor Power: 1.5kw
● Current Voltage: 3.2A/380V
● Fan Diameter: 6.7m
● Adjustable Speed: 0-55rpm
● Full Load Air Volume: 13530m³/min
● Coverage Radius: 16m
● Coverage Area: 8000㎡
● Noise: 42dba
● Unit Weight: 119kg
● Motor Power: 1.5kw
● Current Voltage: 3.2A/380V
● Fan Diameter: 6.1m
● Adjustable Speed: 0-60rpm
● Full Load Air Volume: 12200m³/min
● Coverage Radius: 13m
● Coverage Area: 530㎡
● Noise: 42dba
● Unit Weight: 112kg
● Motor Power: 1.5kw
● Current Voltage: 3.2A/380V
● Fan Diameter: 5.5m
● Adjustable Speed: 0-65rpm
● Full Load Air Volume: 11000m³/min
● Coverage Radius: 10m
● Coverage Area: 310㎡
● Noise: 42dba
● Unit Weight: 105kg
● Motor Power: 1.5kw
● Current Voltage: 3.2A/380V
